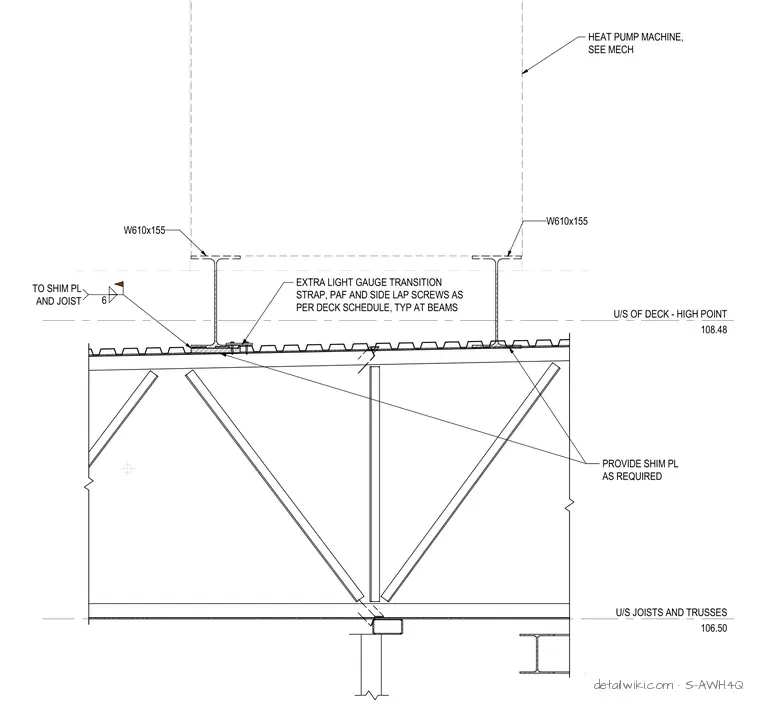

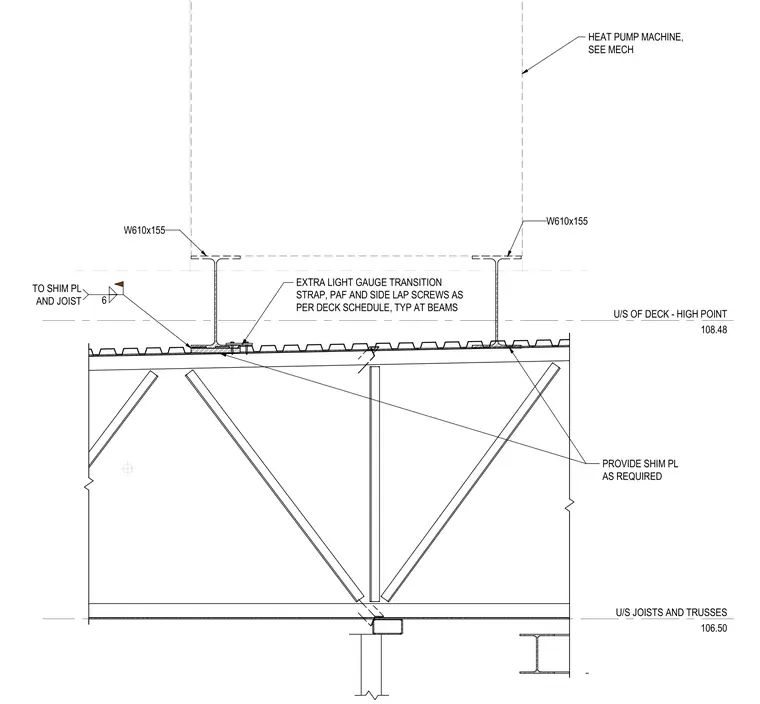

A rooftop heat pump machine is supported by two parallel W610x155 wide flange steel beams spanning across a metal deck and underlying structural steel joists. Shim plates are provided as required beneath the beams resting on the deck. An extra light gauge transition strap is attached using powder-actuated fasteners and side lap screws per the deck schedule, typically at the beams. The underside of the deck is set at a high point elevation of 108.48, and the underside of the joists and trusses is set at 106.50.
U/S OF DECK - HIGH POINT 108.48 U/S JOISTS AND TRUSSES 106.50 W610x155 W610x155 6 TO SHIM PL AND JOIST PROVIDE SHIM PL AS REQUIRED HEAT PUMP MACHINE, SEE MECH EXTRA LIGHT GAUGE TRANSITION STRAP, PAF AND SIDE LAP SCREWS AS PER DECK SCHEDULE, TYP AT BEAMS
