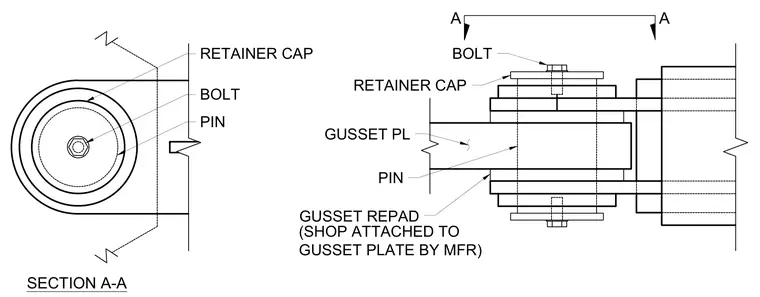

A pin connection secures a gusset plate featuring a shop-attached gusset repad from the manufacturer. A pin passes through the connected members, held in place by a retainer cap on each end. A bolt secures each retainer cap to the assembly.
RETAINER CAP GUSSET PL PIN GUSSET REPAD A A BOLT SECTION A-A BOLT RETAINER CAP (SHOP ATTACHED TO GUSSET PLATE BY MFR) PIN
