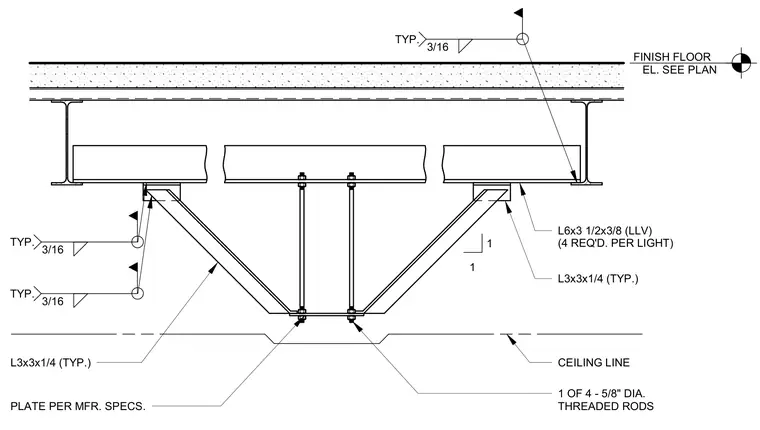

Suspended light fixtures hang from structural steel floor framing using four L6x3 1/2x3/8 long-leg-vertical angles and L3x3x1/4 typical supporting members welded with three-sixteenth-inch fillet welds. Four five-eighth-inch diameter threaded rods secure the lower assembly with manufacturer-specified plates. The assembly positions the lighting fixture relative to the designated ceiling line below the structural floor slab.
1 OF 4 - 5/8" DIA. THREADED RODS 1 1 PLATE PER MFR. SPECS. CEILING LINE L6x3 1/2x3/8 (LLV) (4 REQ'D. PER LIGHT) L3x3x1/4 (TYP.) L3x3x1/4 (TYP.) 3/16 TYP. 3/16 TYP. 3/16 TYP. FINISH FLOOR EL. SEE PLAN
