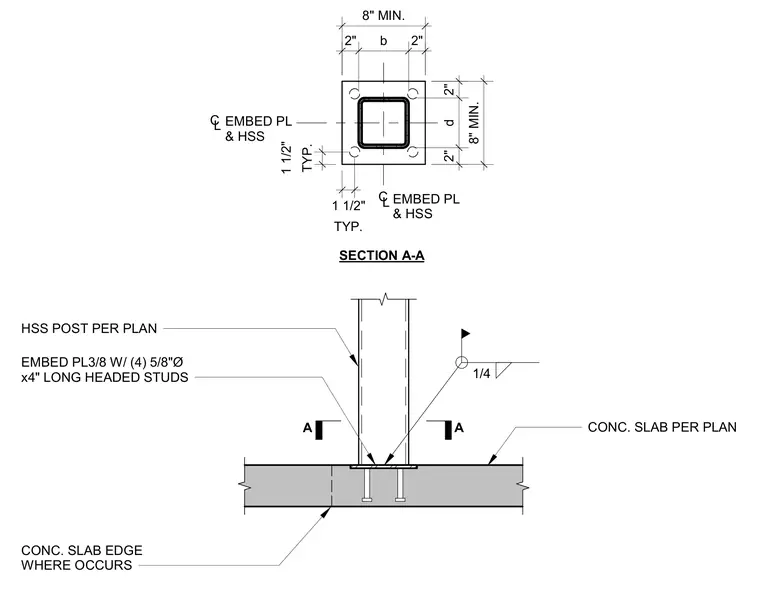

An HSS post is welded to a 3/8-inch steel embed plate set into a concrete slab per plan. The embed plate is anchored using four 5/8-inch diameter by 4-inch long headed studs. A 1/4-inch fillet weld secures the HSS post to the base plate.
A A CONC. SLAB PER PLAN CONC. SLAB EDGE WHERE OCCURS EMBED PL3/8 W/ (4) 5/8"Ø x4" LONG HEADED STUDS HSS POST PER PLAN 1/4 2" b 2" 8" MIN. 2" d 2" 8" MIN. TYP. 1 1/2" TYP. 1 1/2" CL CL EMBED PL & HSS EMBED PL & HSS SECTION A-A
