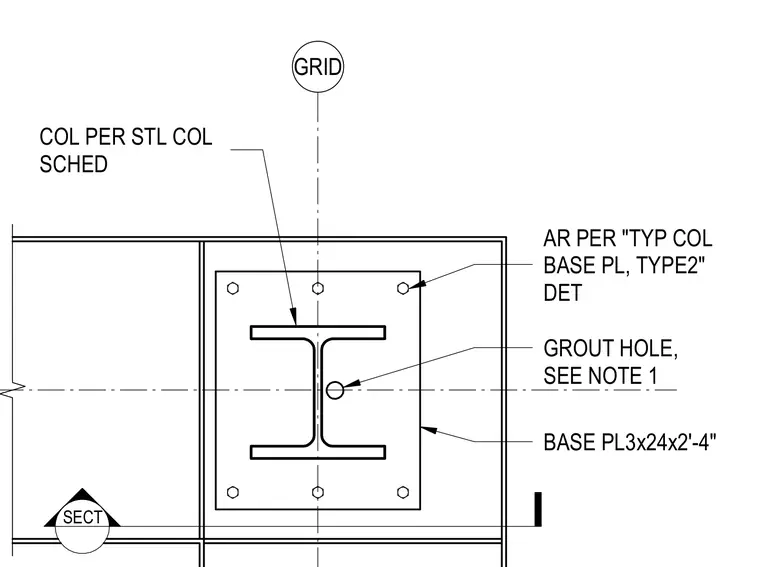

A structural steel column specified per the steel column schedule centers on a 3-inch by 24-inch by 2 feet 4-inch base plate. Anchor rods are arranged per the typical column base plate Type 2 detail. A grout hole is positioned in the base plate in accordance with note 1.
SECT GROUT HOLE, SEE NOTE 1 BASE PL3x24x2'-4" AR PER "TYP COL BASE PL, TYPE2" DET COL PER STL COL SCHED GRID
