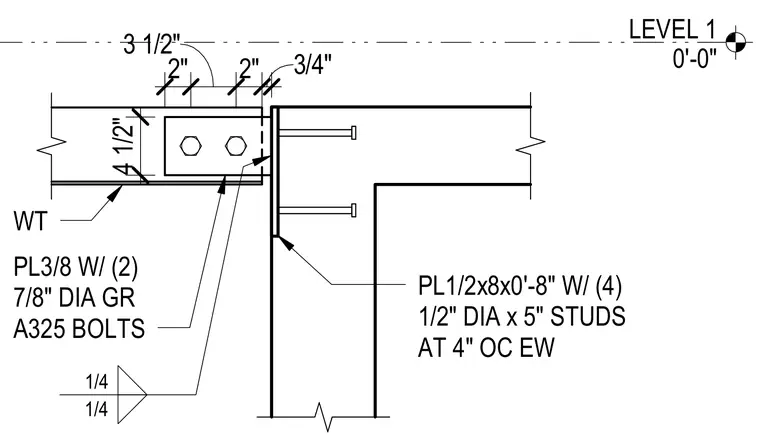

A WT structural section connects to a concrete wall via a three-eighths-inch thick plate welded with quarter-inch fillet welds and fastened using two seven-eighths-inch diameter Grade A325 bolts. The connection bears against an embedded half-inch by eight-inch by zero-foot-eight-inch steel plate anchored into the concrete with four half-inch diameter by five-inch studs spaced at four inches on center each way. Precise edge distances and dimensions are detailed along the top flange and connection plate.
LEVEL 1 0'-0" WT 2" 3 1/2" 2" 3/4" 4 1/2" PL3/8 W/ (2) 7/8" DIA GR A325 BOLTS PL1/2x8x0'-8" W/ (4) 1/2" DIA x 5" STUDS AT 4" OC EW 1/4 1/4
