Structural · S-AW4AB

Trenching Adjacent to Footing

Materials

Elements

Floors / Slabs Foundations / Footings Site / Paving

About this detail

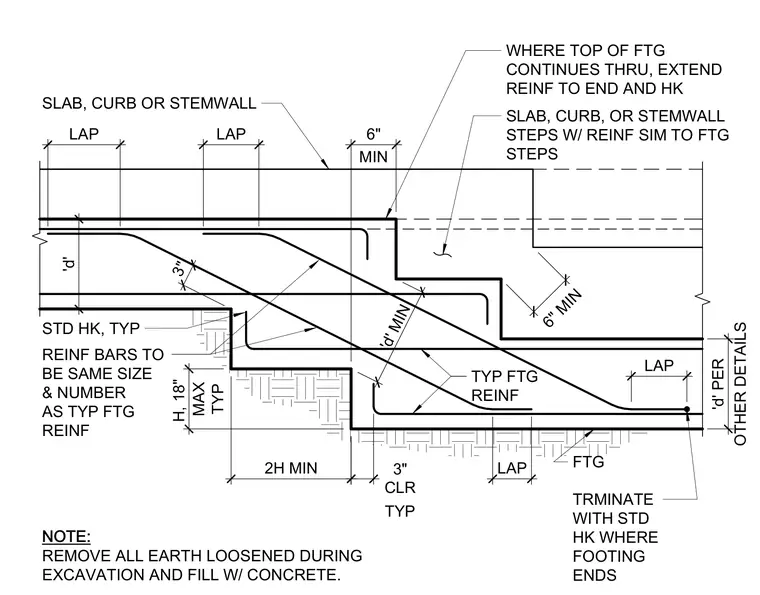

Loose earth is removed during excavation and replaced with concrete up to a maximum typical height of eighteen inches with a two-H minimum horizontal extent. Typical footing reinforcement maintains a three-inch minimum clearance and terminates with standard hooks at footing ends. Slabs, curbs, or stemwalls follow similar stepping and lap splice requirements as the footing steps. Reinforcing bars match the size and number of the typical footing reinforcement, extending continuously where the top of the footing continues through.
