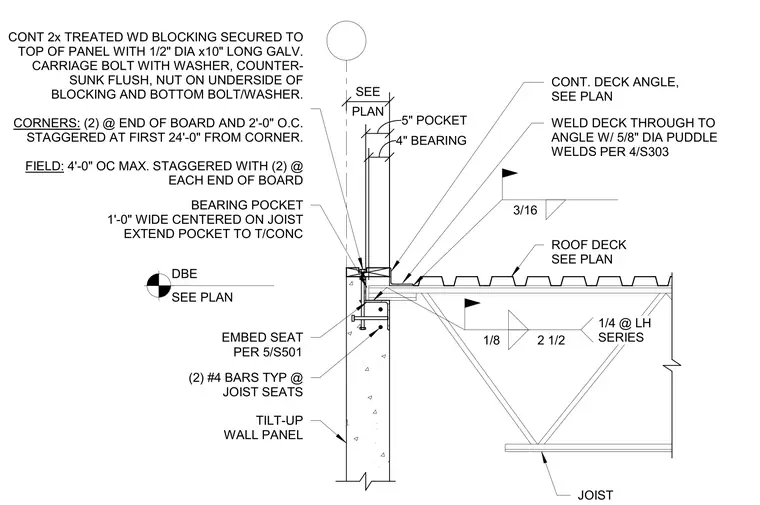

The steel joist bears into a 1-foot wide pocket formed in the top of the tilt-up concrete wall panel, providing 4 inches of bearing. The joist seat rests on an embed seat per detail 5/S501, reinforced with two number 4 reinforcing bars. A continuous deck angle is anchored at the top of the wall, and the roof deck is secured to this angle with 5/8-inch diameter puddle welds per detail 4/S303. Continuous 2x treated wood blocking is fastened to the top of the panel using 1/2-inch diameter by 10-inch long galvanized carriage bolts with washers, countersunk flush with the nut on the underside. Blocking is spaced at 4 feet on center in the field, with staggered fasteners at 2 feet on center at corners for the first 24 feet.
Text on the drawing
PER 4/S303 ROOF DECK SEE PLAN DBE SEE PLAN 4" BEARING 5" POCKET PLAN SEE CONT. DECK ANGLE, SEE PLAN WELD DECK THROUGH TO ANGLE W/ 5/8" DIA PUDDLE WELDS CONT 2x TREATED WD BLOCKING SECURED TO TOP OF PANEL WITH 1/2" DIA x10" LONG GALV. CARRIAGE BOLT WITH WASHER, COUNTER- SUNK FLUSH, NUT ON UNDERSIDE OF BLOCKING AND BOTTOM BOLT/WASHER. CORNERS: (2) @ END OF BOARD AND 2'-0" O.C. STAGGERED AT FIRST 24'-0" FROM CORNER. FIELD: 4'-0" OC MAX. STAGGERED WITH (2) @ EACH END OF BOARD BEARING POCKET 1'-0" WIDE CENTERED ON JOIST EXTEND POCKET TO T/CONC 3/16
