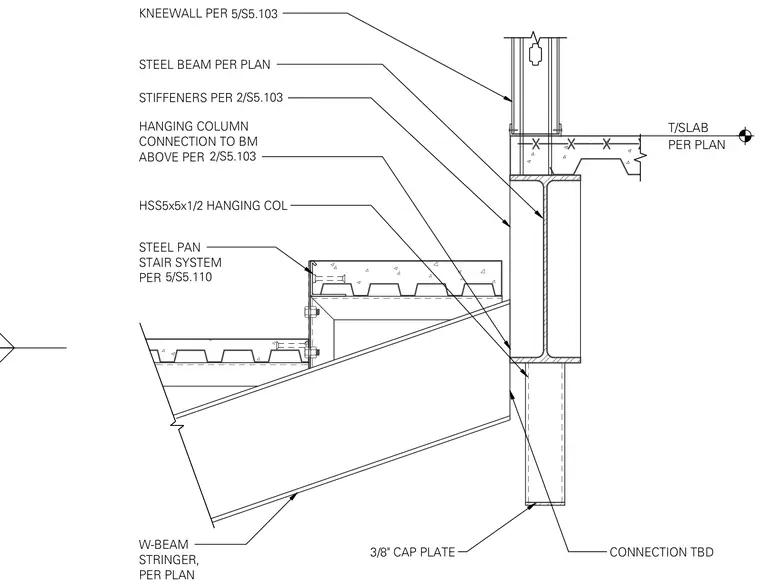

An HSS5x5x1/2 hanging column suspends from an overhead steel beam, supported by a three-eighths-inch cap plate and stiffeners. A W-beam stair stringer frames into the hanging column system to support a steel pan stair system per plan. A kneewall bears on the upper steel beam and slab structure above.
W-BEAM STRINGER, PER PLAN STEEL PAN STAIR SYSTEM PER 5/S5.110 KNEEWALL PER 5/S5.103 T/SLAB PER PLAN 3/8" CAP PLATE STEEL BEAM PER PLAN STIFFENERS PER 2/S5.103 HANGING COLUMN CONNECTION TO BM ABOVE PER 2/S5.103 HSS5x5x1/2 HANGING COL CONNECTION TBD
