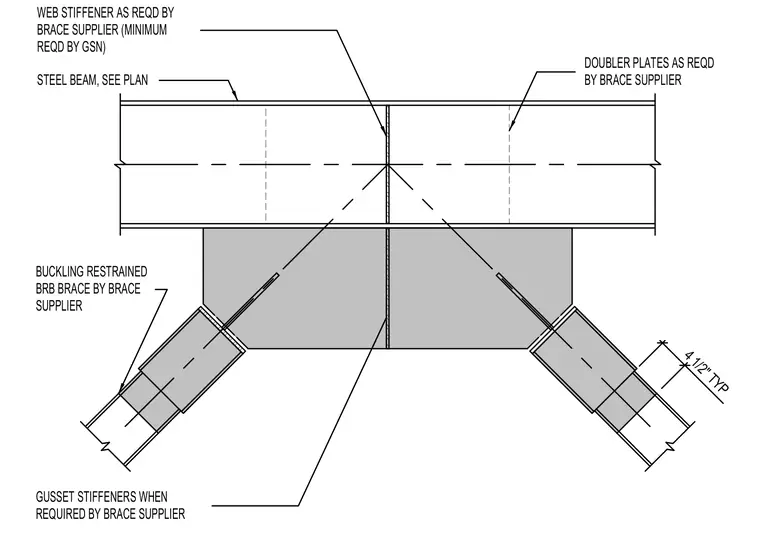

A buckling-restrained brace connects to a steel beam through a gusset plate assembly. Web stiffeners and doubler plates are installed as required by the brace supplier to reinforce the beam web and flanges against high local forces. The connection includes a typical clearance dimension for the brace interface as specified by the supplier.
DOUBLER PLATES AS REQD BUCKLING RESTRAINED BRB BRACE BY BRACE SUPPLIER 4 1/2" TYP GUSSET STIFFENERS WHEN REQUIRED BY BRACE SUPPLIER WEB STIFFENER AS REQD BY BRACE SUPPLIER (MINIMUM REQD BY GSN) STEEL BEAM, SEE PLAN BY BRACE SUPPLIER
