A structural steel column bears on a Grade 50 baseplate measuring two and a half inches thick by five feet three inches by two feet. The assembly is secured by fourteen two-inch diameter ASTM F1554 Grade 105 anchor bolts equipped with three-quarter-inch by four-inch by four-inch washers and double nuts. Each anchor bolt requires a minimum thread projection of one-half inch above the top of each nut. The steel column and slab pocket are positioned per the elevation drawings, with a referenced slab control joint nearby.

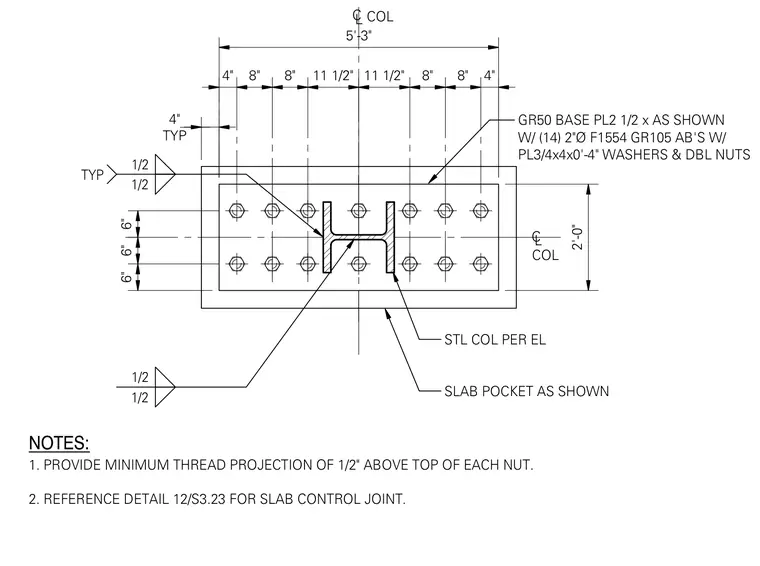

NOTES: 1. PROVIDE MINIMUM THREAD PROJECTION OF 1/2" ABOVE TOP OF EACH NUT. 2. REFERENCE DETAIL 12/S3.23 FOR SLAB CONTROL JOINT. GR50 BASE PL2 1/2 x AS SHOWN W/ (14) 2"Ø F1554 GR105 AB'S W/ PL3/4x4x0'-4" WASHERS & DBL NUTS COL C L 1/2 1/2 1/2 1/2 TYP STL COL PER EL SLAB POCKET AS SHOWN TYP 4" 6" 6" 6" 2'-0" COL C L 4" 8" 8" 11 1/2" 11 1/2" 8" 8" 4" 5'-3"
