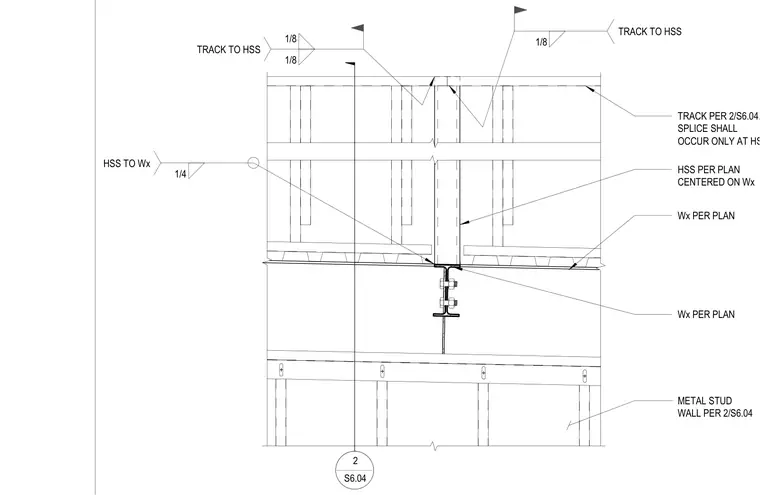

A hollow structural section is centered on a wide flange beam sized per plan and welded with a quarter-inch fillet weld. Cold-formed steel tracks are secured to the hollow structural section with one-eighth-inch fillet welds, with splices restricted to occur only at the hollow structural section. A metal stud wall connects below, framing into the support assembly per standard details.
1/8 TRACK TO HSS 1/8 1/8 TRACK TO HSS HSS PER PLAN CENTERED ON Wx Wx PER PLAN TRACK PER 2/S6.04. SPLICE SHALL OCCUR ONLY AT HSS 1/4 HSS TO Wx Wx PER PLAN METAL STUD WALL PER 2/S6.04 2 S6.04 _________________________________________________________________________________
