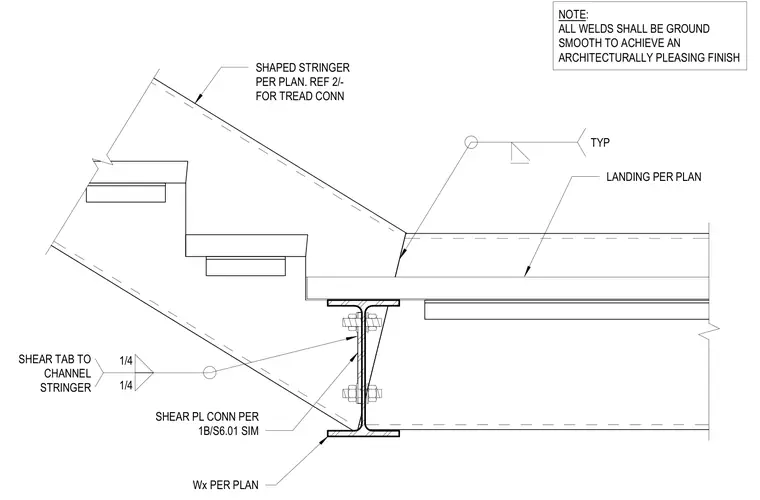

A stair landing connects to a shaped stringer using a shear tab welded to a channel stringer with quarter-inch fillet welds. The landing framing is sized per plan and supported by a wide-flange beam designated as Wx per plan. All welds are specified to be ground smooth to achieve an architecturally pleasing finish.
SHAPED STRINGER PER PLAN. REF 2/- FOR TREAD CONN LANDING PER PLAN TYP SHEAR PL CONN PER 1B/S6.01 SIM Wx PER PLAN 1/4 1/4 SHEAR TAB TO CHANNEL STRINGER NOTE: ALL WELDS SHALL BE GROUND SMOOTH TO ACHIEVE AN ARCHITECTURALLY PLEASING FINISH
