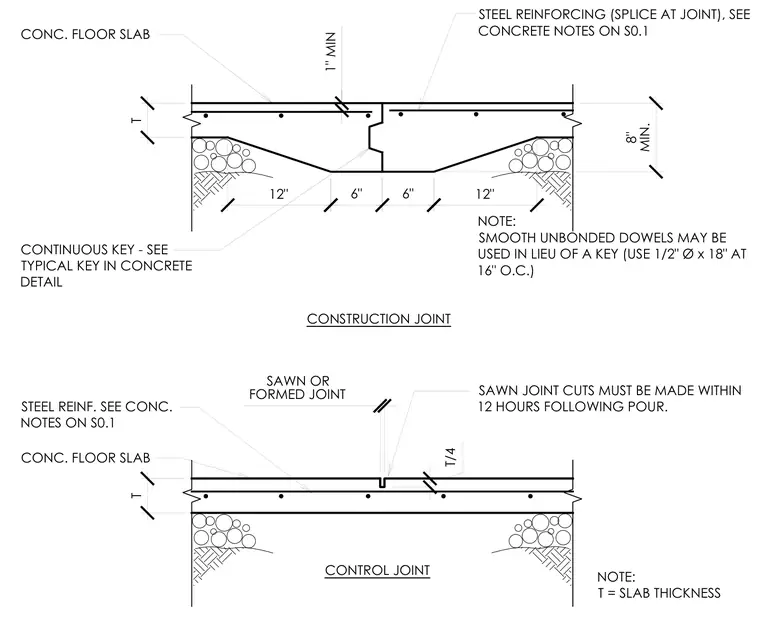

Concrete slab-on-grade construction joints and sawn control joints bear directly on compacted subgrade. The construction joint features a thickened slab edge with a continuous key, steel reinforcing spliced at the joint, and an alternative option for smooth unbonded dowels measuring one-half inch in diameter by eighteen inches long spaced at sixteen inches on center. The control joint incorporates a sawn or formed joint cut to a depth equal to one-quarter of the slab thickness within twelve hours following the pour, with continuous steel reinforcing running through the slab.
T 8" MIN. T/4 SAWN OR FORMED JOINT CONC. FLOOR SLAB NOTE: T = SLAB THICKNESS CONC. FLOOR SLAB STEEL REINFORCING (SPLICE AT JOINT), SEE CONCRETE NOTES ON S0.1 CONSTRUCTION JOINT CONTROL JOINT CONTINUOUS KEY - SEE TYPICAL KEY IN CONCRETE DETAIL 1" MIN STEEL REINF. SEE CONC. NOTES ON S0.1 SAWN JOINT CUTS MUST BE MADE WITHIN 12 HOURS FOLLOWING POUR. NOTE: SMOOTH UNBONDED DOWELS MAY BE USED IN LIEU OF A KEY (USE 1/2" Ø x 18" AT 16" O.C.) T 6" 12" 6" 12"
