A concrete housekeeping pad sits atop a structural slab with a pad height sized per mechanical, electrical, or architectural drawings and equipment supplier requirements. The interface between the pad and structural slab requires a four and a half inch minimum bond or a roughened surface if the pad is poured separately. Reinforcement within the topping slab follows the typical topping slab detail. Anchor bolts or fasteners are placed as required by the equipment supplier.

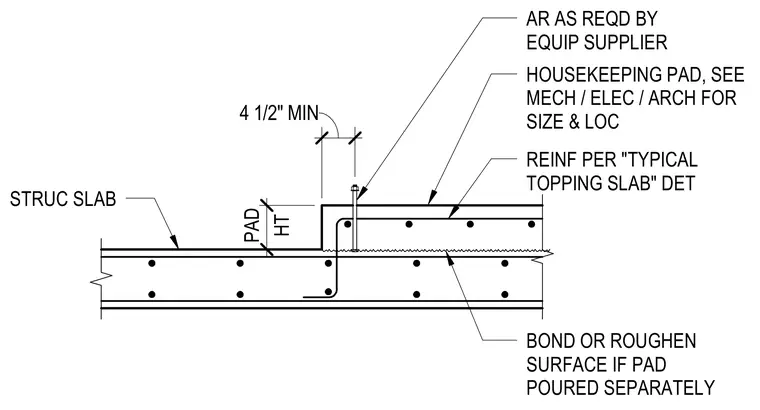

4 1/2" MIN BOND OR ROUGHEN SURFACE IF PAD POURED SEPARATELY REINF PER "TYPICAL TOPPING SLAB" DET HOUSEKEEPING PAD, SEE MECH / ELEC / ARCH FOR SIZE & LOC AR AS REQD BY EQUIP SUPPLIER STRUC SLAB 6" PAD HT
