A non-frame pipe column base connection features a hollow structural section tube similar to the pipe column welded to a base plate using a minimum five-sixteenth-inch weld per American Welding Society standards. The base plate is anchored into a concrete pile cap using anchor bolts equipped with double nuts, hardened washers, and typical half-inch by four-inch square plate washers at the embedment level. A two-inch non-shrink grout layer sits below the base plate atop the pile cap. The foundation includes number four ties spaced at six inches on center with a minimum of three ties. A dedicated grout hole is provided on the base plate matching the anchor bolt hole size, and bolt edge distances are maintained at three inches minimum for column mark 3C9.

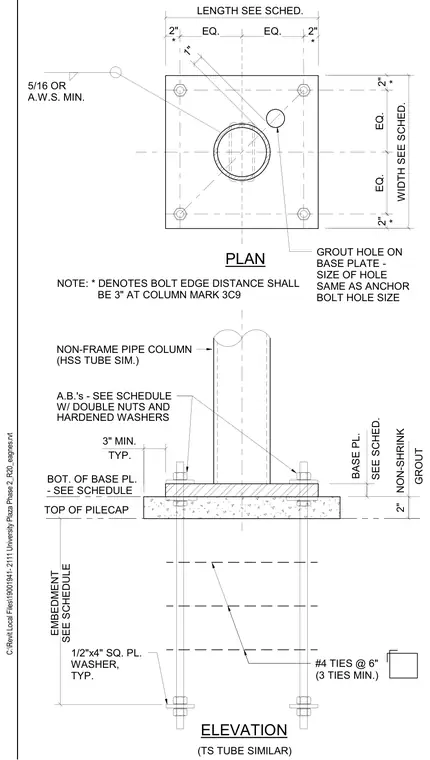

ELEVATION PLAN BOT. OF BASE PL. (TS TUBE SIMILAR) 1/2"x4" SQ. PL. WASHER, TYP. TOP OF PILECAP - SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN.) NON-FRAME PIPE COLUMN A.B.'s - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS (HSS TUBE SIM.) 5/16 OR A.W.S. MIN. EMBEDMENT SEE SCHEDULE 3" MIN. TYP. NON-SHRINK 2" SEE SCHED. BASE PL. GROUT LENGTH SEE SCHED. 1" 2" * EQ. WIDTH SEE SCHED. 2" * EQ. EQ. 2" * EQ. 2" * GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE NOTE: * DENOTES BOLT EDGE DISTANCE SHALL BE 3" AT COLUMN MARK 3C9 C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
