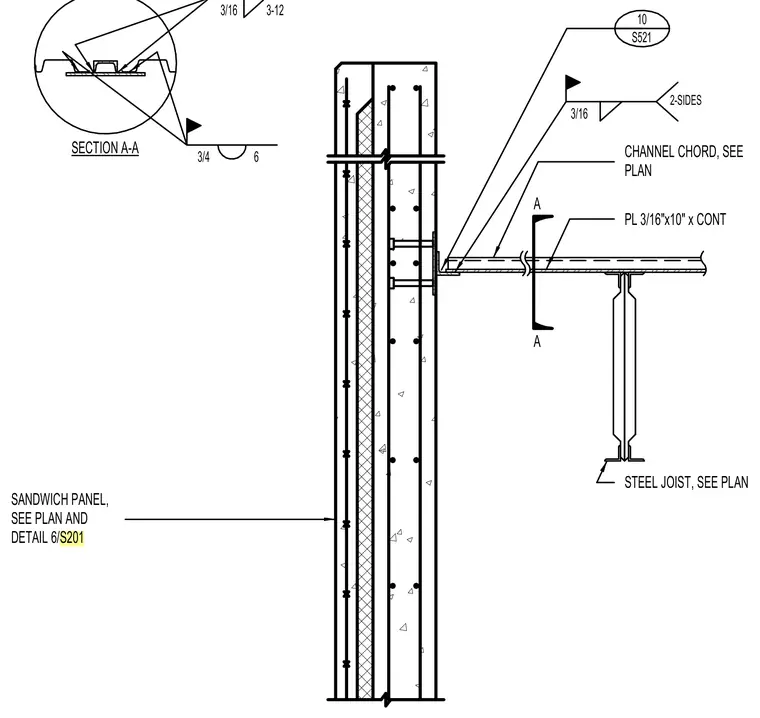

A sandwich panel connects to a channel chord and steel joist using a continuous 3/16 inch by 10 inch plate. The assembly features a three-sixteenth inch continuous fillet weld detailed on two sides as shown in Section A-A. The channel chord and steel joist are sized per plan.
3/16 SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 STEEL JOIST, SEE PLAN 2-SIDES CHANNEL CHORD, SEE PLAN PL 3/16"x10" x CONT SECTION A-A A A 3/4 6 3/16 3-12 10 S521
