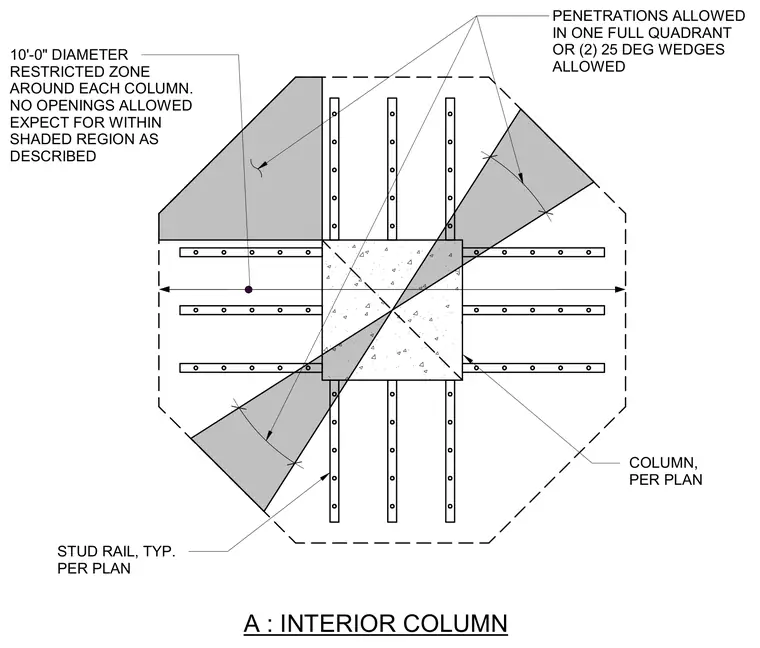

An interior column is surrounded by a ten-foot diameter restricted zone that prohibits openings except within designated shaded regions. Within these restricted zones, penetrations are permitted only in one full quadrant or as two twenty-five degree wedges. Shear reinforcement consists of stud rails arranged radially around the column per plan.
COLUMN, PER PLAN A : INTERIOR COLUMN STUD RAIL, TYP. PER PLAN 10'-0" DIAMETER RESTRICTED ZONE AROUND EACH COLUMN. NO OPENINGS ALLOWED EXPECT FOR WITHIN SHADED REGION AS DESCRIBED 25° 25° PENETRATIONS ALLOWED IN ONE FULL QUADRANT OR (2) 25 DEG WEDGES ALLOWED
