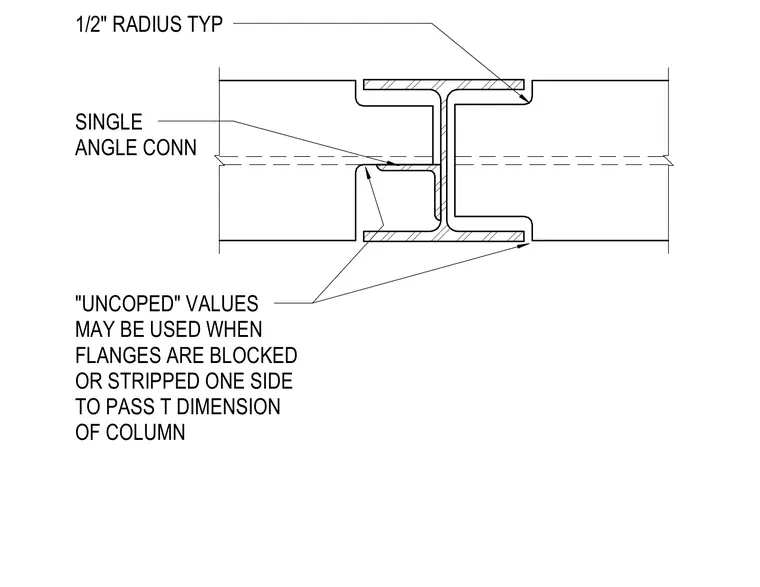

Uncopied values may be used when beam flanges are blocked or stripped on one side to pass the T-dimension of the supporting steel column. A single angle connection secures the framing member to the column web. A typical one-half inch radius is provided at the flange cuts to prevent stress concentrations.
"UNCOPED" VALUES MAY BE USED WHEN FLANGES ARE BLOCKED OR STRIPPED ONE SIDE TO PASS T DIMENSION OF COLUMN 1/2" RADIUS TYP SINGLE ANGLE CONN
