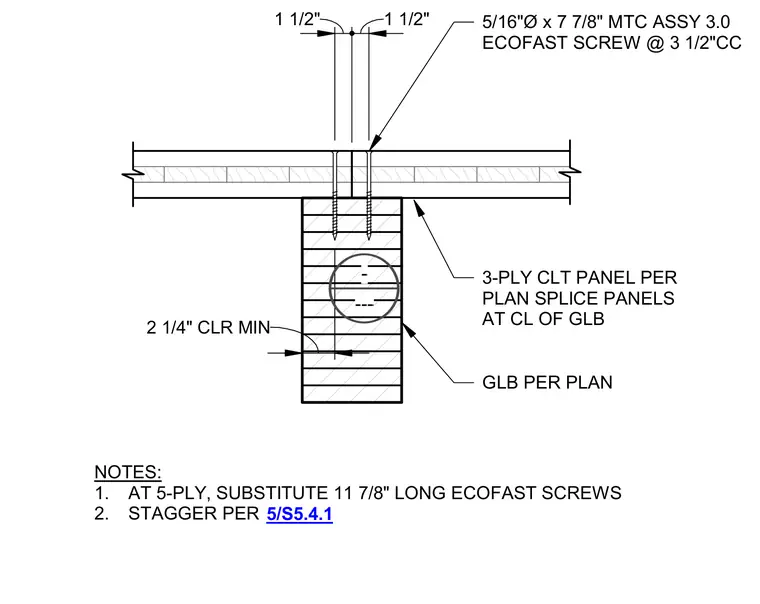

Three-ply cross-laminated timber panels splice together at the centerline of a glulam beam sized per plan. Structural screws measuring 5/16-inch diameter by 7-7/8 inches long secure the panels at a spacing of 3-1/2 inches center-to-center. For 5-ply panels, substitute 11-7/8 inch long structural screws. Stagger fasteners in accordance with structural drawings.
5/16"Ø x 7 7/8" MTC ASSY 3.0 ECOFAST SCREW @ 3 1/2"CC 3-PLY CLT PANEL PER PLAN SPLICE PANELS AT CL OF GLB GLB PER PLAN 1 1/2" 1 1/2" 2 1/4" CLR MIN NOTES: 1. AT 5-PLY, SUBSTITUTE 11 7/8" LONG ECOFAST SCREWS 2. STAGGER PER - --- - --- 5/S5.4.1
