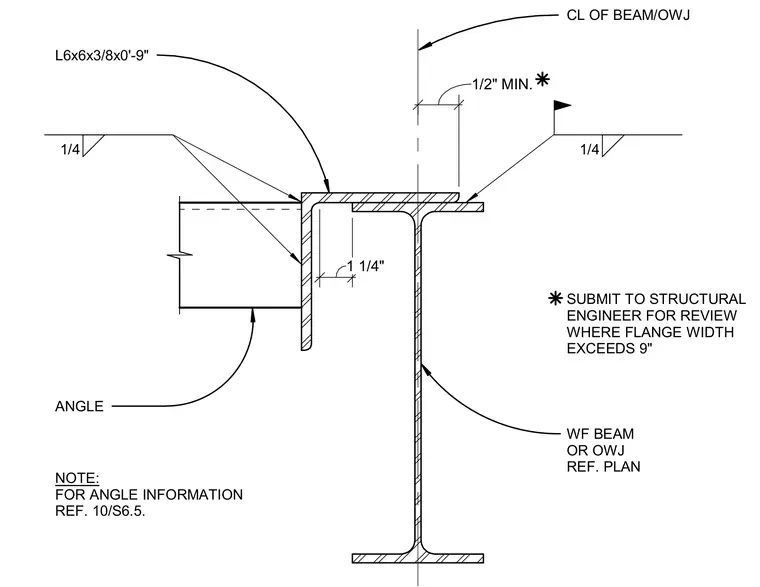

An angle measuring L6x6x3/8 by zero feet nine inches long frames a roof deck opening, supported by a wide flange beam or open web joist. The angle is secured with one-quarter-inch fillet welds along its leg and flange connections. A minimum one-half-inch clearance is maintained from the centerline of the beam or joist, with a note requiring structural engineer review when flange widths exceed nine inches. Additional angle information is referenced on sheet S6.5.
CL OF BEAM/OWJ WF BEAM OR OWJ REF. PLAN SUBMIT TO STRUCTURAL ENGINEER FOR REVIEW WHERE FLANGE WIDTH EXCEEDS 9" ANGLE L6x6x3/8x0'-9" 1/4 1/4 1/2" MIN. 1 1/4" NOTE: FOR ANGLE INFORMATION REF. 10/S6.5.
