Wide-Flange Beam Centered on Column Flange Connection

Elements

Connections

About this detail

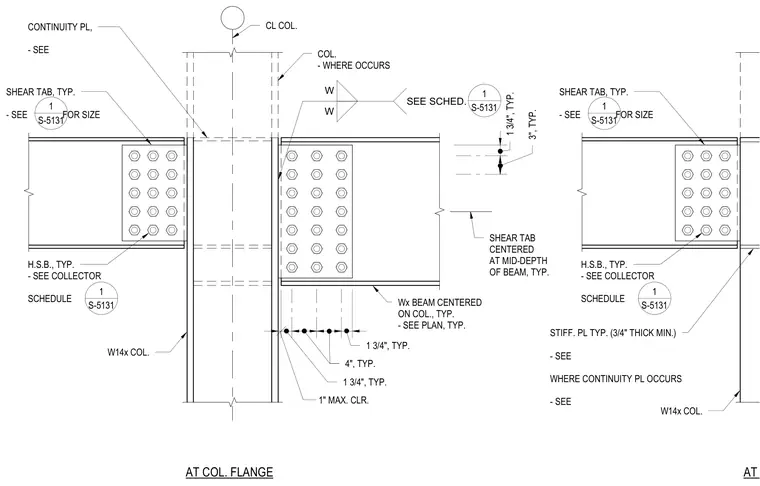

A wide-flange beam is framed into a wide-flange column using a single plate shear tab centered at the mid-depth of the beam web. The beam is secured with high-strength bolts sized per the collector schedule. Continuity plates and stiffener plates with a minimum thickness of three-quarters of an inch are provided at the column flange locations as required by the design. Typical edge distances and bolt spacings are maintained throughout the connection assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
