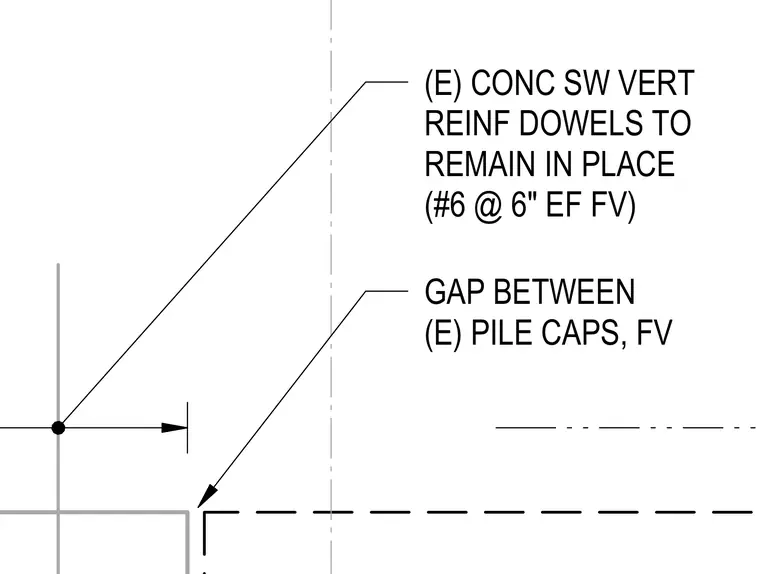

An existing concrete shear wall vertical reinforcing dowel is detailed to remain in place with number six bars spaced at six inches each face face view. A specified gap is maintained between existing pile caps.
GAP BETWEEN (E) PILE CAPS, FV (E) CONC SW VERT REINF DOWELS TO REMAIN IN PLACE (#6 @ 6" EF FV)
