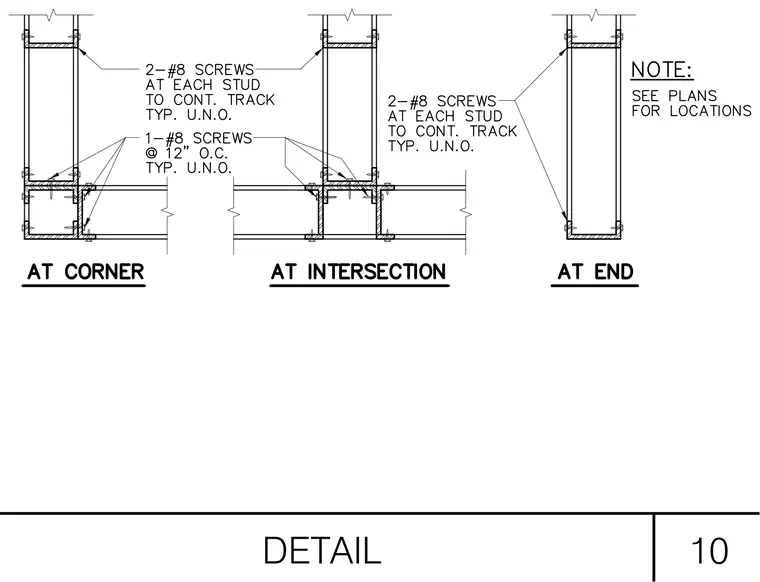

Cold-formed steel stud framing conditions at corners, intersections, and ends are fastened to continuous tracks using two number 8 screws at each stud typically unless noted otherwise. Additional fastening consists of one number eight screw spaced at twelve inches on center typically unless noted otherwise along the intersecting track flanges. Locations of each specific condition are coordinated with the floor plans.
