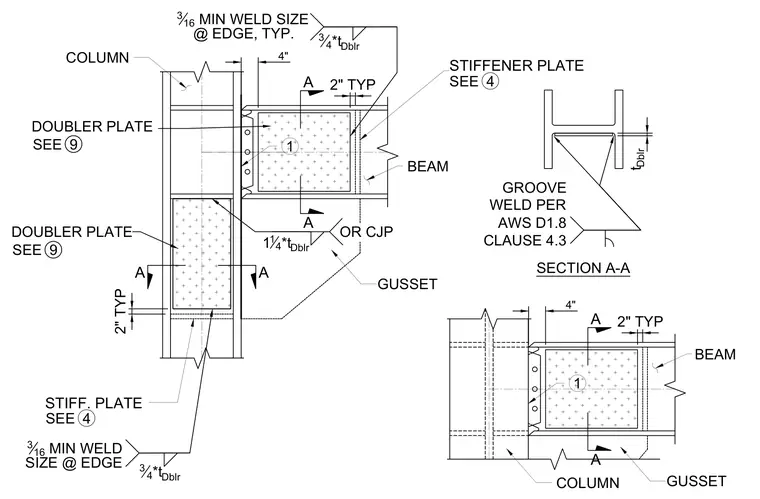

A structural steel column connects to a steel beam featuring web doubler plates welded to the column web. Stiffener plates are welded perpendicular to the beam web with a three-sixteenths inch minimum weld size at the edges. A gusset plate ties into the assembly below the beam flange with either a complete joint penetration groove weld or a partial joint penetration groove weld sized at one and one-quarter times the doubler plate thickness per AWS D1.8 Clause 4.3. Additional doubler plate groove welds are specified at three-quarters of the plate thickness. Section A-A details the profile and positioning of the doubler plate relative to the column flanges.
OR CJP DOUBLER PLATE GROOVE WELD PER AWS D1.8 CLAUSE 4.3 t Dblr COLUMN A A SECTION A-A 1 14 *t Dblr 2" TYP STIFF. PLATE 4 SEE BEAM A A 3 4 *t Dblr 316 MIN WELD SIZE @ EDGE, TYP. 4" 2" TYP STIFFENER PLATE 4 SEE 1 BEAM COLUMN A A 4" 2" TYP 1 3 4 *t Dblr 316 MIN WELD SIZE @ EDGE 9 SEE DOUBLER PLATE 9 SEE GUSSET GUSSET
