Structural · S-AT6CE

Buckling-Restrained Brace Base Plate Connection Detail

Elements

Connections

Gusset Plate Welded Connection Bolted Connection

About this detail

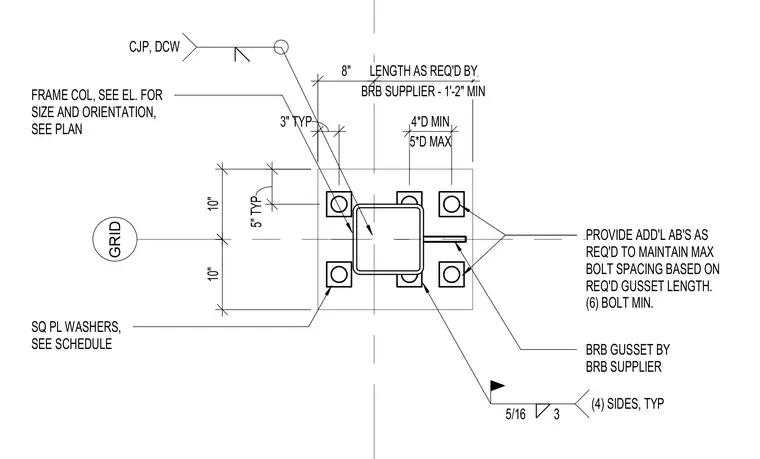

A column base plate connection incorporates a buckling-restrained brace gusset and anchor bolts. The frame column size and orientation are sized per plan and elevation, welded with a complete joint penetration weld. Additional anchor bolts are provided as required to maintain maximum bolt spacing based on the required gusset length, with a minimum of six bolts utilizing square plate washers per schedule. The buckling-restrained brace gusset is supplied by the brace manufacturer and welded with five-sixteenth-inch welds on four sides typically.
