Typical Raised Equipment Pad

Materials

Concrete

Elements

Floors / Slabs Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development Embed Plate

About this detail

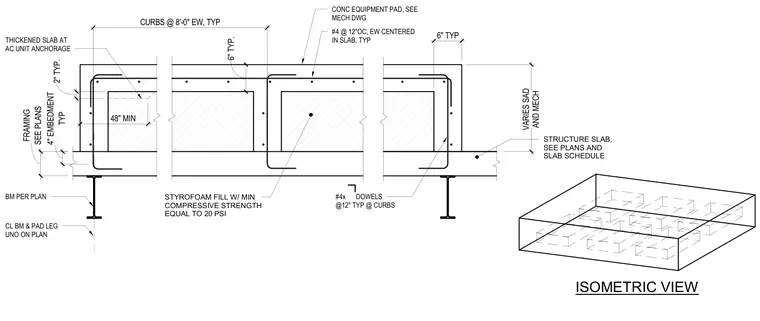

A concrete equipment pad is installed over a structural slab with supporting framing beams below. The pad incorporates a styrofoam fill layer with a minimum compressive strength of twenty pounds per square inch, topped with a concrete thickness of six inches typically. Reinforcement consists of number four rebar spaced at twelve inches on center each way centered in the slab, tied into the structural slab with number four dowels at twelve inches typically at the curbs. A forty-eight inch minimum thickened slab is provided at the air conditioning unit anchorage.
