An angle measuring 3x3x3/16 inches is anchored to each low flute on both sides of the metal deck opening using 1/2-inch diameter expansion bolts with a 3-1/2-inch embedment. The metal deck flutes extend a minimum distance on each side of the opening, with reinforcing cores spaced up to 18 inches maximum.

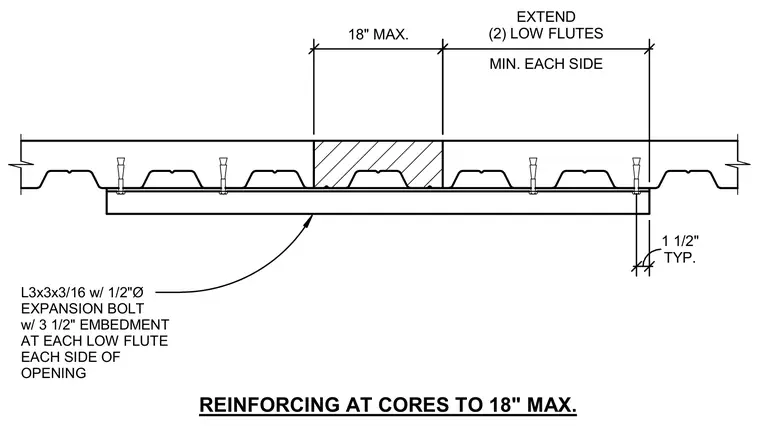

REINFORCING AT CORES TO 18" MAX. 18" MAX. MIN. EACH SIDE EXTEND (2) LOW FLUTES TYP. 1 1/2" L3x3x3/16 w/ 1/2"Ø EXPANSION BOLT w/ 3 1/2" EMBEDMENT AT EACH LOW FLUTE EACH SIDE OF OPENING
