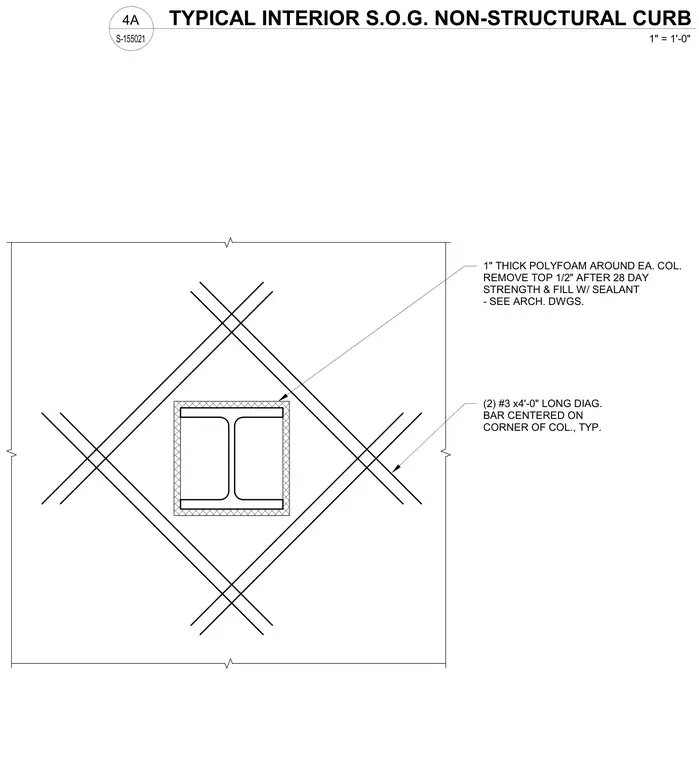

An interior slab-on-grade non-structural curb surrounds a structural steel column with one-inch thick polyfoam placed around each column. Two number three by four-foot long diagonal reinforcing bars are centered on the corner of the column. The top half-inch of polyfoam is removed after twenty-eight-day concrete strength is achieved and filled with sealant per architectural drawings.
(2) #3 x4'-0" LONG DIAG. BAR CENTERED ON CORNER OF COL., TYP. 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. DWGS. S-155021 1" = 1'-0" 4A TYPICAL INTERIOR S.O.G. NON-STRUCTURAL CURB
