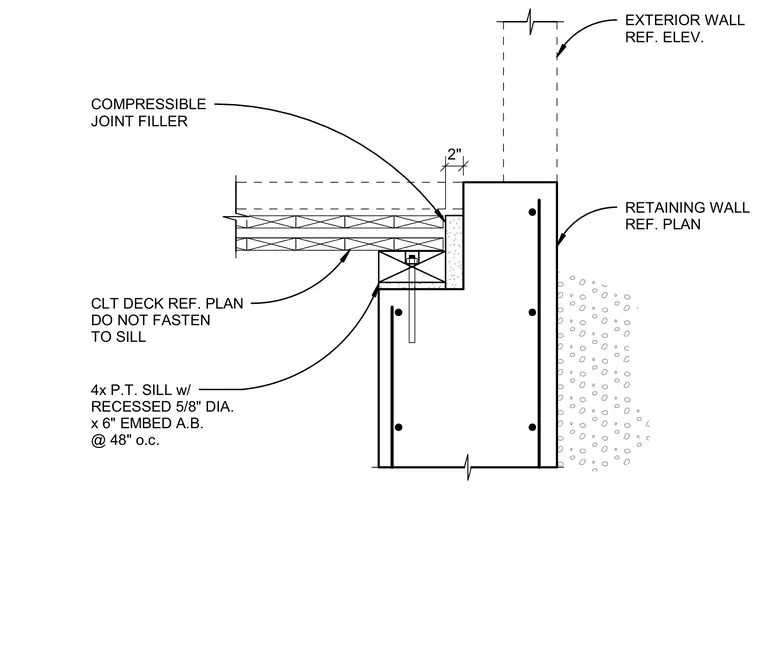

A cross-laminated timber deck bears on a four-inch pressure-treated wood sill that sits atop a concrete retaining wall. The sill plate is secured by five-eighth-inch diameter by six-inch embedded anchor bolts spaced at forty-eight inches on center with recessed nuts. A two-inch compressible joint filler separates the cross-laminated timber deck from the vertical face of the retaining wall. The cross-laminated timber deck is left unfastened to the wood sill plate.
2" EXTERIOR WALL REF. ELEV. RETAINING WALL REF. PLAN COMPRESSIBLE JOINT FILLER CLT DECK REF. PLAN DO NOT FASTEN TO SILL 4x P.T. SILL w/ RECESSED 5/8" DIA. x 6" EMBED A.B. @ 48" o.c.
