A drift track provided by the supplier accommodates vertical and lateral deflections noted in the general structural notes. A bent plate and connection connect the girt to the structure per detail 1 on sheet S611, while gravity connections handle the stud load to the structure and slab edge. A joint in the finishes is provided to allow for interstory drifts, with architectural finishes coordinated separately.

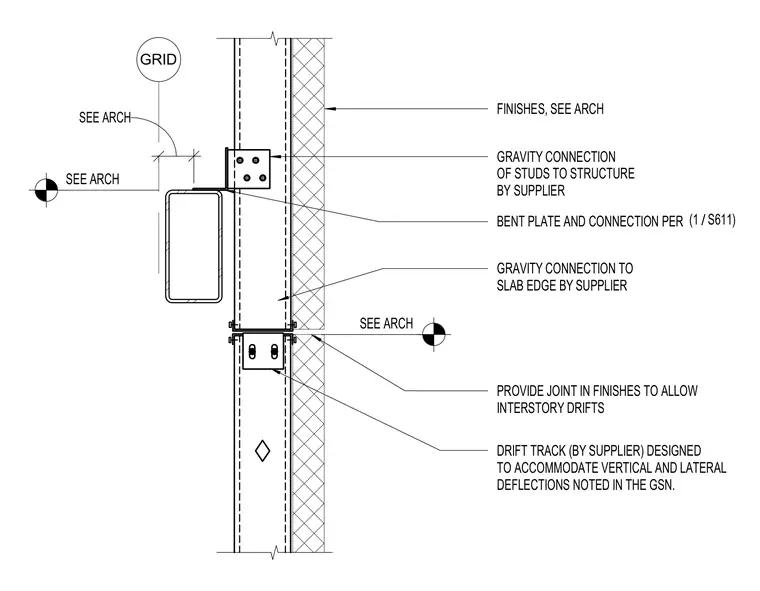

GRID SEE ARCH GRAVITY CONNECTION TO SLAB EDGE BY SUPPLIER FINISHES, SEE ARCH DRIFT TRACK (BY SUPPLIER) DESIGNED TO ACCOMMODATE VERTICAL AND LATERAL DEFLECTIONS NOTED IN THE GSN. PROVIDE JOINT IN FINISHES TO ALLOW INTERSTORY DRIFTS SEE ARCH GRAVITY CONNECTION OF STUDS TO STRUCTURE BY SUPPLIER BENT PLATE AND CONNECTION PER / (1 S611) SEE ARCH
