An HSS6x4 post with a one-quarter-inch cap plate receives hollow structural section girts equipped with three-eighth-inch end plates. Three-sixteenth-inch fillet welds secure the girt end plates to the post at the top and bottom. Angle clips measuring L3x2x3/8 by zero-foot-six inches connect the girt end plates to the post web. Two five-eighth-inch diameter A325 bolts fasten each angle clip assembly in place.

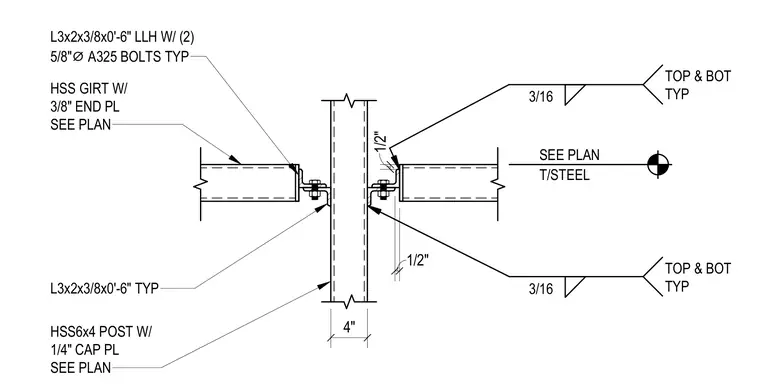

3/16 TOP & BOT TYP T/STEEL SEE PLAN 4" 1/2" 1/2" 3/16 TOP & BOT TYP HSS GIRT W/ 3/8" END PL SEE PLAN L3x2x3/8x0'-6" LLH W/ (2) 5/8" ⌀ A325 BOLTS TYP L3x2x3/8x0'-6" TYP HSS6x4 POST W/ 1/4" CAP PL SEE PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
