A concrete slab-on-grade construction joint features a thickness of t inches and two half-thickness layers. The joint incorporates three-eighths by four-and-a-quarter by four-and-a-half inch PNA diamond plates spaced at twenty-four inches on center, paired with number three by thirty-six inch long dowels spaced at twenty-four inches on center centered in between the joint. Reinforcement and slab thickness are sized per plan with a typical two-and-a-half inch clearance.

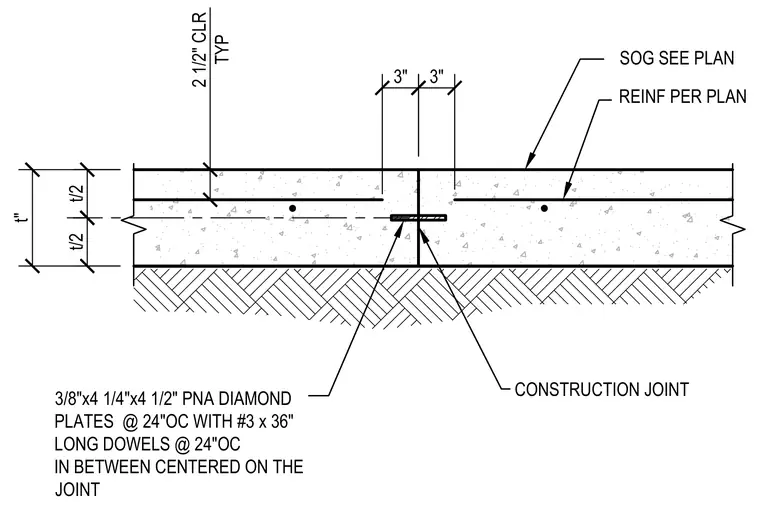

3" 2 1/2" CLR TYP SOG SEE PLAN 3/8"x4 1/4"x4 1/2" PNA DIAMOND PLATES @ 24"OC WITH #3 x 36" LONG DOWELS @ 24"OC IN BETWEEN CENTERED ON THE JOINT CONSTRUCTION JOINT 3" REINF PER PLAN t" t/2 t/2
