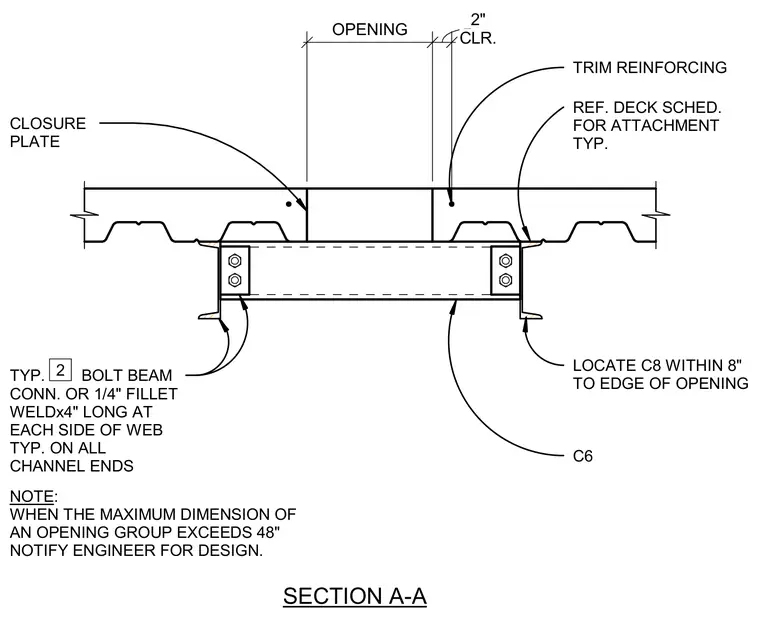

Framing around a structural opening in a metal deck floor or roof assembly consists of C6 channel members spanning the opening supported by bolted or welded connections with two-bolt beam connections or quarter-inch fillet welds four inches long at each side of the web on all channel ends. Trim reinforcing and closure plates frame the opening with a two-inch clearance. A C8 channel is located within eight inches of the opening edge typically. Openings exceeding forty-eight inches in maximum dimension require notification of the engineer for design.
CLOSURE PLATE TRIM REINFORCING SECTION A-A OPENING CLR. 2" NOTE: WHEN THE MAXIMUM DIMENSION OF AN OPENING GROUP EXCEEDS 48" NOTIFY ENGINEER FOR DESIGN. LOCATE C8 WITHIN 8" TO EDGE OF OPENING TYP. BOLT BEAM CONN. OR 1/4" FILLET WELDx4" LONG AT EACH SIDE OF WEB TYP. ON ALL CHANNEL ENDS 2 C6 REF. DECK SCHED. FOR ATTACHMENT TYP.
