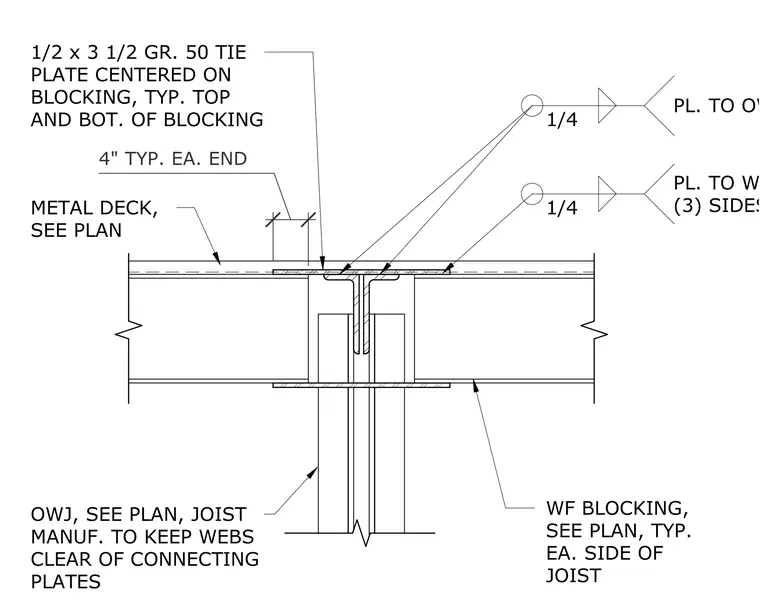

An open web steel joist bears on a wide flange girder, with wide flange blocking installed on each side of the joist. A 1/2" x 3 1/2" Grade 50 steel tie plate is centered on the blocking at both the top and bottom flanges. Tie plates are secured with 1/4" fillet welds to the open web joist and the wide flange girder, with the girder connection specified as a three-sided weld. The joist manufacturer must keep joist webs clear of the connecting plates to accommodate the assembly. Metal decking is installed over the top of the connection, with a 4" typical length specified at each end of the blocking.
Text on the drawing
SEE PLAN SIDE 1/4 PL. TO WF (3) SIDES OWJ, SEE PLAN, JOIST MANUF. TO KEEP WEBS CLEAR OF CONNECTING PLATES WF BLOCKING, SEE PLAN, TYP. EA. SIDE OF JOIST 1/2 x 3 1/2 GR. 50 TIE PLATE CENTERED ON BLOCKING, TYP. TOP AND BOT. OF BLOCKING METAL DECK, SEE PLAN 4" TYP. EA. END 1/4 PL. TO OWJ 6 JOIST TO GIRDER - GRID 5.5 SPRINKLER PENETRATION IN WF BEAM
