Typical Slab Strip at Building Envelope

Materials

Reinforced Concrete Steel Cold-formed Steel Timber / Wood

Elements

Beams Floors / Slabs Arches Reinforcing

Connections

Welded Connection Shear Stud / Composite

About this detail

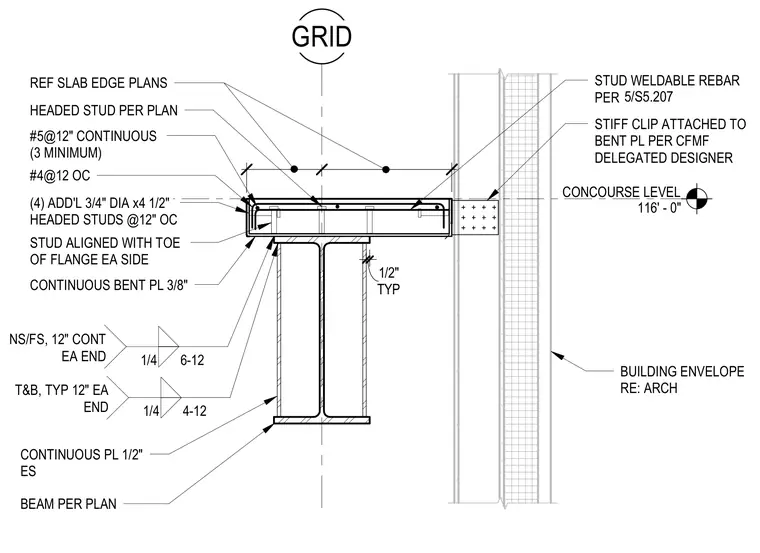

A reinforced concrete slab bears on a structural steel beam per plan, featuring a continuous three-eighths-inch bent plate at the slab edge with four additional three-quarter-inch diameter by four-and-a-half-inch headed studs at twelve inches on center aligned with the toe of the flange each side. The slab reinforcing includes number five bars at twelve inches continuous with three minimum, number four bars at twelve inches on center, and stud weldable rebar per specification. A continuous one-half-inch plate runs each side of the beam web, welded with a quarter-inch fillet weld at six to twelve inches near side and far side, and twelve inches continuous each end, alongside a quarter-inch fillet weld at four to twelve inches top and bottom typically twelve inches each end. A stiff clip attaches to the bent plate for the cold-formed metal framing per delegated design, positioned near the concourse level at elevation one hundred sixteen feet zero inches.
