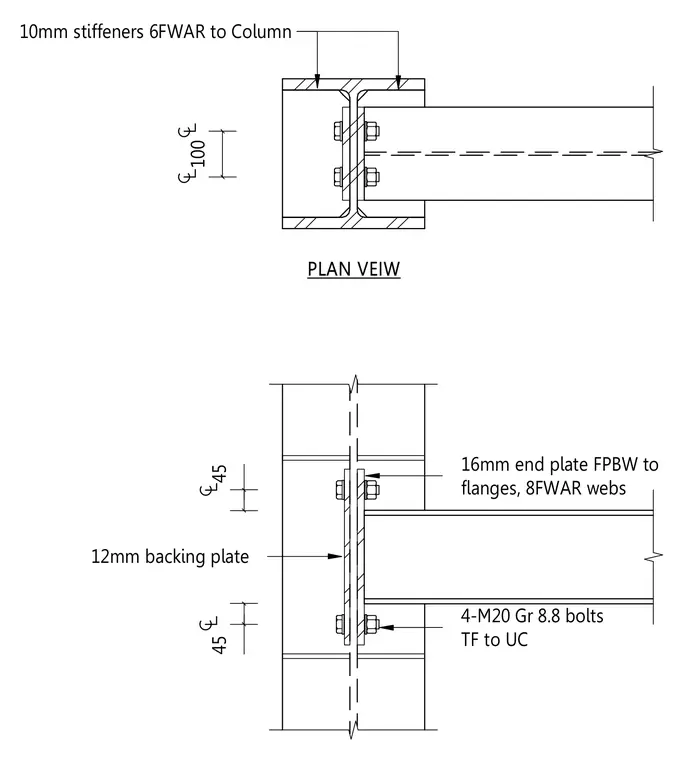

A steel beam connects to a universal column using a sixteen millimeter end plate welded full penetration butt weld to the beam flanges and fillet welded to the web. The end plate attaches to the column web with four M20 grade 8.8 tensioned friction-grip bolts. Ten millimeter column web stiffeners are fillet welded to the column flanges. A twelve millimeter backing plate is provided at the connection.
16mm end plate FPBW to flanges, 8FWAR webs 4-M20 Gr 8.8 bolts TF to UC 10mm stiffeners 6FWAR to Column PLAN VEIW 100 45 45 12mm backing plate
