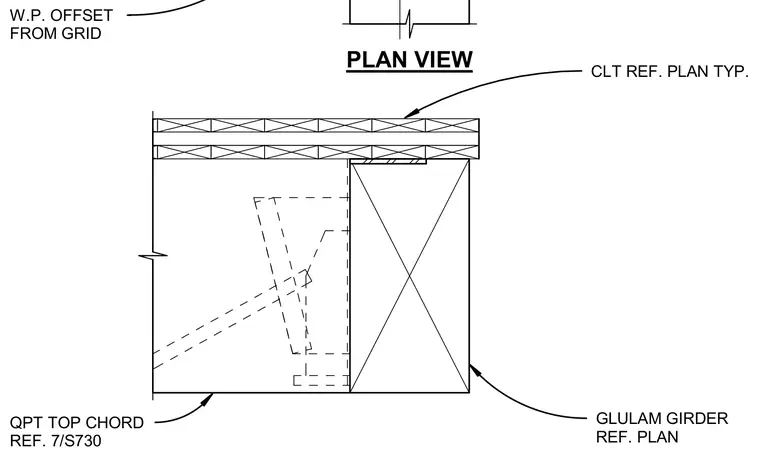

A QPT top chord frames into a glulam girder with a work point offset from the grid as referenced on plan. Cross-laminated timber panels bear continuously across the top of the assembly. Hidden lines indicate concealed internal connector plates and fasteners aligned with the top chord and girder interface.
W.P. OFFSET FROM GRID PLAN VIEW CLT REF. PLAN TYP. GLULAM GIRDER REF. PLAN QPT TOP CHORD REF. 7/S730
