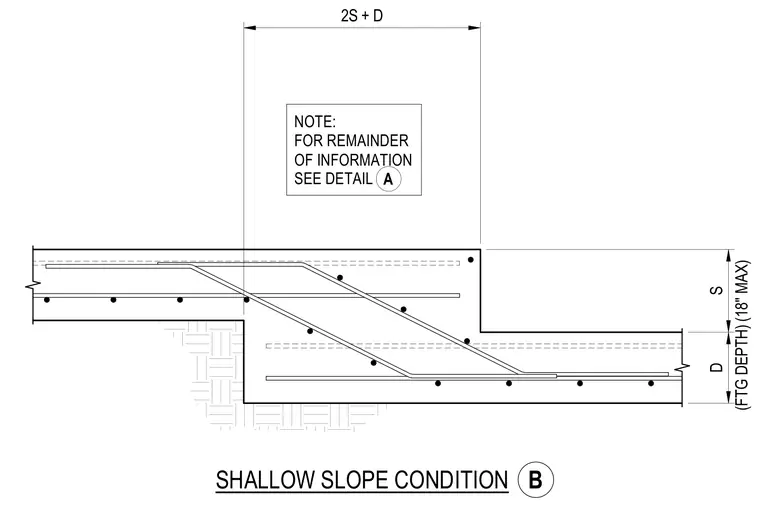

A shallow slope condition at a stepped concrete footing transition incorporates a maximum footing depth of eighteen inches and a slope dimension relative to footing thickness. Reinforcing steel dowels and longitudinal bars extend through the step with angled bent bars bridging the elevation change. Dimension arrows define the transition length as two times the slope plus the depth, with a reference note pointing to an adjacent detail for remaining information.
SHALLOW SLOPE CONDITION NOTE: FOR REMAINDER OF INFORMATION SEE DETAIL 2S + D (FTG DEPTH) D (18" MAX) S B A
