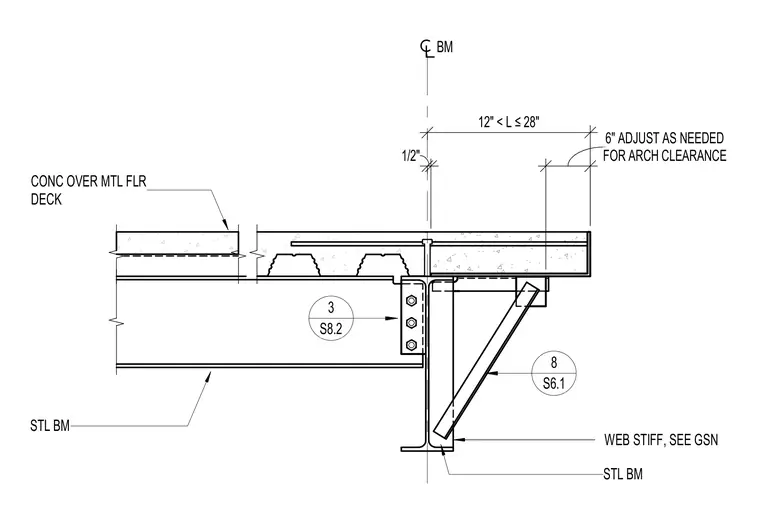

Concrete over metal floor deck bears on a structural steel beam featuring a web stiffener and a six-inch adjustment allowance for architectural clearance. A beam connection tied to the framing is referenced by sheet callouts.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN 3 S8.2 8 S6.1 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED
