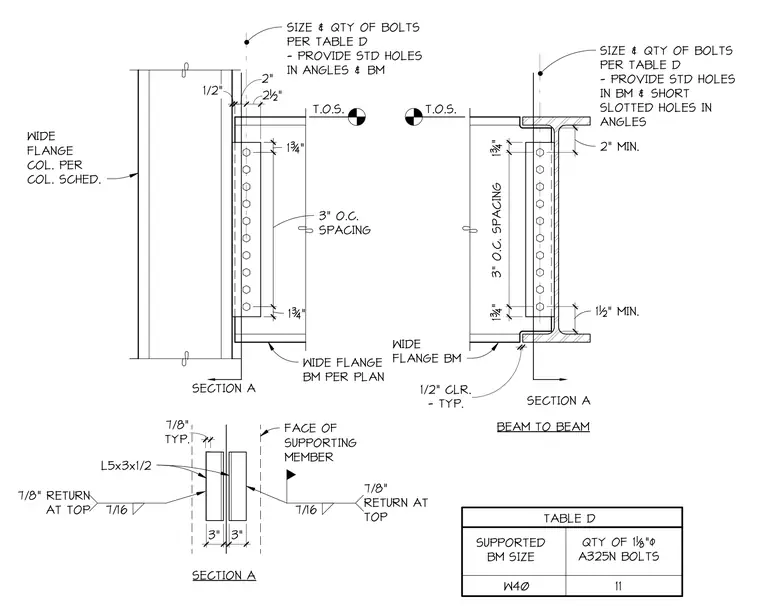

This structural steel detail shows a framed beam-to-beam connection utilizing L5x3x1/2 double angles bolted to the web of a wide-flange supported beam and a wide-flange supporting column or beam. The angles are welded to the supporting member face with seven-sixteenths inch fillet welds featuring seven-eighths inch returns at the top. The supported beam web receives seven-eighths inch A325N bolts sized per Table D, with standard holes in the angles and beam on one side, and standard holes in the beam with short-slotted holes in the angles on the other. A half-inch typical clearance is maintained between the supported beam and the face of the supporting member.
T.O.S. 1¾" 3" O.C. SPACING 1¾" 1/2" 2" 2½" SIZE & QTY OF BOLTS PER TABLE D - PROVIDE STD HOLES IN ANGLES & BM WIDE FLANGE BM PER PLAN WIDE FLANGE COL. PER COL. SCHED. SIZE & QTY OF BOLTS PER TABLE D - PROVIDE STD HOLES IN BM & SHORT SLOTTED HOLES IN ANGLES T.O.S. BEAM TO BEAM SECTION A TYP. 7/8" L5x3x1/2 7/16 7/8" RETURN AT TOP SECTION A 7/16 7/8" RETURN AT TOP FACE OF SUPPORTING MEMBER SUPPORTED BM SIZE QTY OF 17"0 A325N BOLTS W40 11 TABLE D 3" 3" - TYP. 1/2" CLR. 1¾" 3" O.C. SPACING 1¾" SECTION A 1 3/4" 2'-3" 1 3/4" WIDE FLANGE BM 4 1 / 4" 4 1 / 4" 1½" MIN. 2" MIN.
