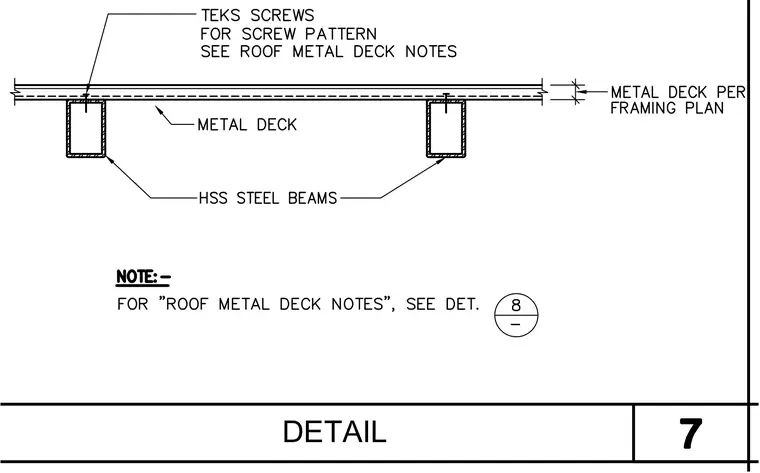

Roof metal deck bears across hollow structural section steel beams and is fastened with TEKS screws. The screw pattern is coordinated with the roof metal deck notes. Metal deck sizing and profile follow the structural framing plan.
