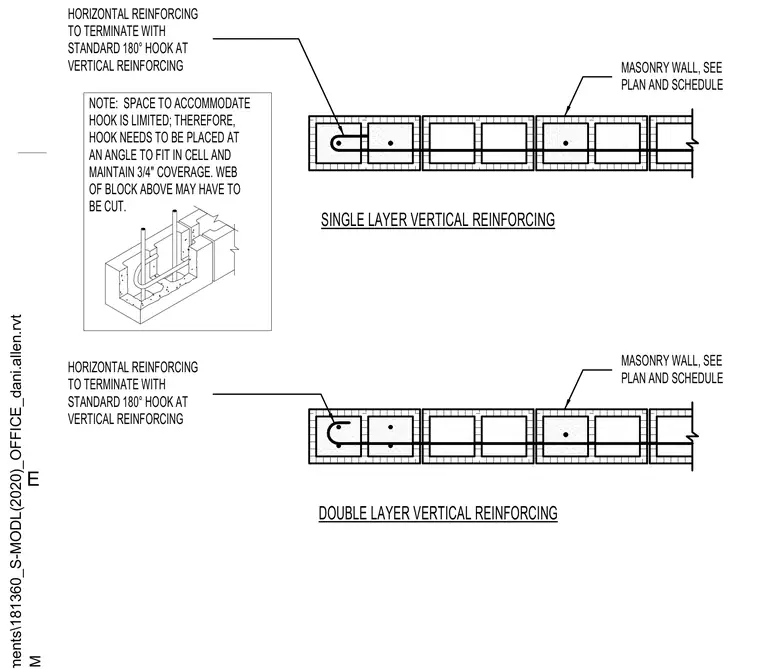

Horizontal reinforcing terminates with a standard 180-degree hook at vertical reinforcing within a concrete masonry unit wall. Space to accommodate the hook is limited, requiring the hook to be placed at an angle to fit in the cell and maintain three-quarters-inch coverage. The web of the block above may have to be cut to clear the assembly. Both single layer and double layer vertical reinforcing configurations are detailed.
SINGLE LAYER VERTICAL REINFORCING HORIZONTAL REINFORCING TO TERMINATE WITH STANDARD 180° HOOK AT VERTICAL REINFORCING HORIZONTAL REINFORCING TO TERMINATE WITH STANDARD 180° HOOK AT VERTICAL REINFORCING NOTE: SPACE TO ACCOMMODATE OF BLOCK ABOVE MAY HAVE TO MAINTAIN 3/4" COVERAGE. WEB AN ANGLE TO FIT IN CELL AND HOOK NEEDS TO BE PLACED AT HOOK IS LIMITED; THEREFORE, BE CUT. MASONRY WALL, SEE PLAN AND SCHEDULE MASONRY WALL, SEE PLAN AND SCHEDULE DOUBLE LAYER VERTICAL REINFORCING E
