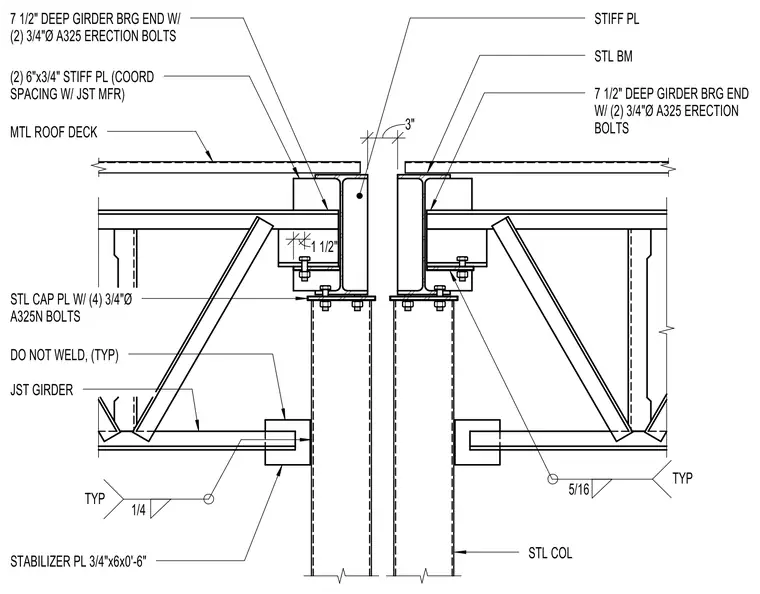

A steel column supports a steel beam and joist girder at an expansion joint with a three-inch separation. The steel beam features a seven-and-a-half-inch deep girder bearing end secured with two three-quarter-inch diameter A325 erection bolts. The steel column top plate is fastened using four three-quarter-inch diameter A325N bolts, complemented by two six-inch by three-quarter-inch stiffener plates with spacing coordinated with the joist manufacturer. The joist girder connects to the column with a stabilizer plate measuring three-quarters of an inch by six inches by zero feet six inches, left unwelded to the girder typically. A metal roof deck spans above the assembly.
STL COL STL BM 7 1/2" DEEP GIRDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS MTL ROOF DECK STABILIZER PL 3/4"x6x0'-6" DO NOT WELD, (TYP) STL CAP PL W/ (4) 3/4"Ø A325N BOLTS (2) 6"x3/4" STIFF PL (COORD SPACING W/ JST MFR) 7 1/2" DEEP GIRDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS JST GIRDER 1 1/2" TYP 5/16 TYP 1/4 STIFF PL 3"
