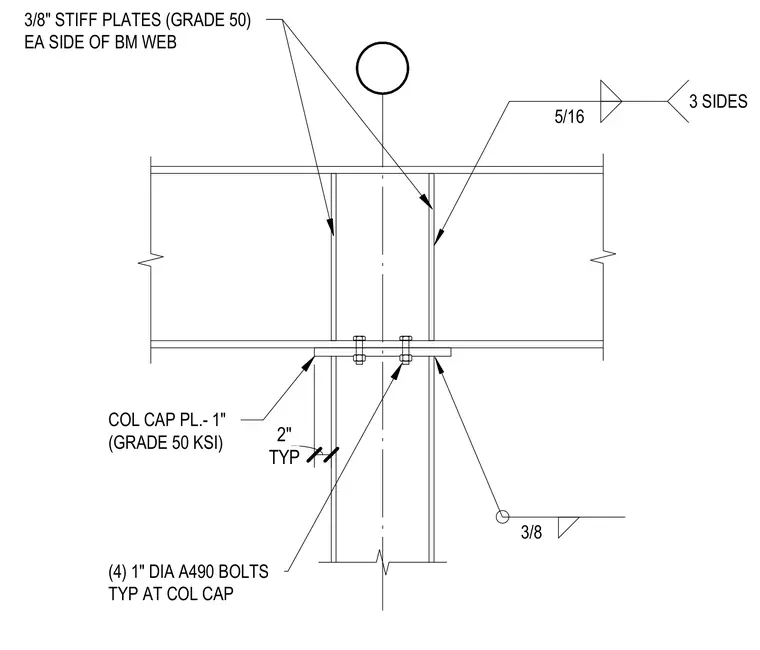

A one-inch Grade 50 steel column cap plate rests atop the steel column and is secured with four one-inch diameter A490 bolts. Three-eighths-inch Grade 50 stiffener plates are welded to each side of the beam web using five-sixteenths-inch fillet welds on three sides. The connection assembly transfers heavy loads from the beam to the supporting column.
3/8 5/16 3 SIDES COL CAP PL.- 1" (GRADE 50 KSI) 3/8" STIFF PLATES (GRADE 50) EA SIDE OF BM WEB TYP 2" (4) 1" DIA A490 BOLTS TYP AT COL CAP
