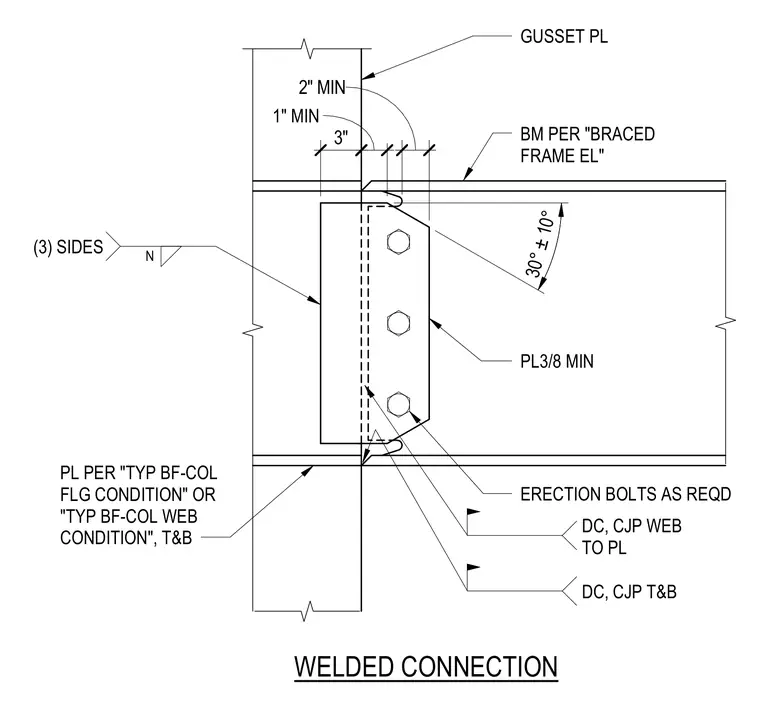

A structural beam sized per the braced frame elevation connects to a column using a gusset plate and a minimum three-eighths-inch plate with three erection bolts as required. Complete joint penetration welds secure the web to the plate, and top and bottom connections are made with welds on three sides. Additional plate conditions are specified per typical braced frame column flange or web conditions.
BM PER "BRACED FRAME EL" DC, CJP WEB TO PL DC, CJP T&B GUSSET PL PL PER "TYP BF-COL FLG CONDITION" OR "TYP BF-COL WEB CONDITION", T&B (3) SIDES N PL3/8 MIN 3" ERECTION BOLTS AS REQD 1" MIN 2" MIN 30° ± 10° 1" MIN WELDED CONNECTION
