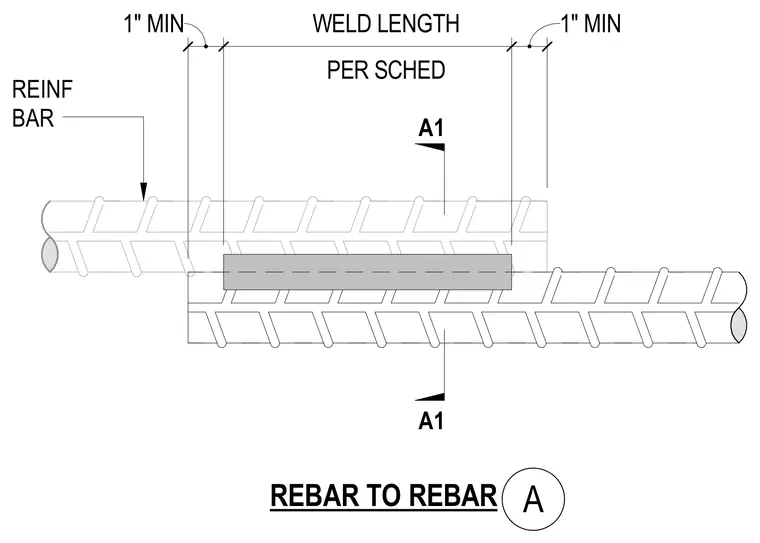

Two reinforcing bars overlap in a parallel configuration to form a welded lap splice connection. The weld length is sized per schedule with a one inch minimum extension at each end beyond the overlapping region. Section cut A1 indicates the transverse profile of the spliced reinforcing bars.
