A reinforced concrete shear wall connects to a twenty-four by thirty inch precast concrete column furnished by others. The column boundary element features Grade 80 A706 number five ties spaced at four inches on center maximum, satisfying ACI 318-14 Section 18.10.6.4c, configured as continuous rebar hoops or ties as shown. Vertical reinforcing bars are provided within the column and wall per the shear wall elevation. Typical wall reinforcement thickness and bar sizes are detailed on the structural drawings.

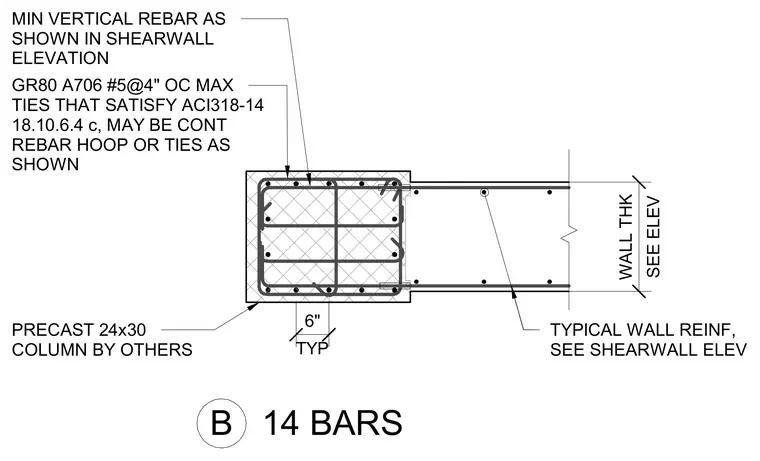

B 14 BARS SEE ELEV WALL THK TYPICAL WALL REINF, SEE SHEARWALL ELEV . GR80 A706 #5@4" OC MAX TIES THAT SATISFY ACI318-14 18.10.6.4 c, MAY BE CONT REBAR HOOP OR TIES AS SHOWN PRECAST 24x30 COLUMN BY OTHERS MIN VERTICAL REBAR AS SHOWN IN SHEARWALL ELEVATION TYP 6"
