Structural · S-APRM6

Eyebrow Roof Canopy and Veneer Support Steel Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Windows Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Rebar Splice / Development Deck Attachment

About this detail

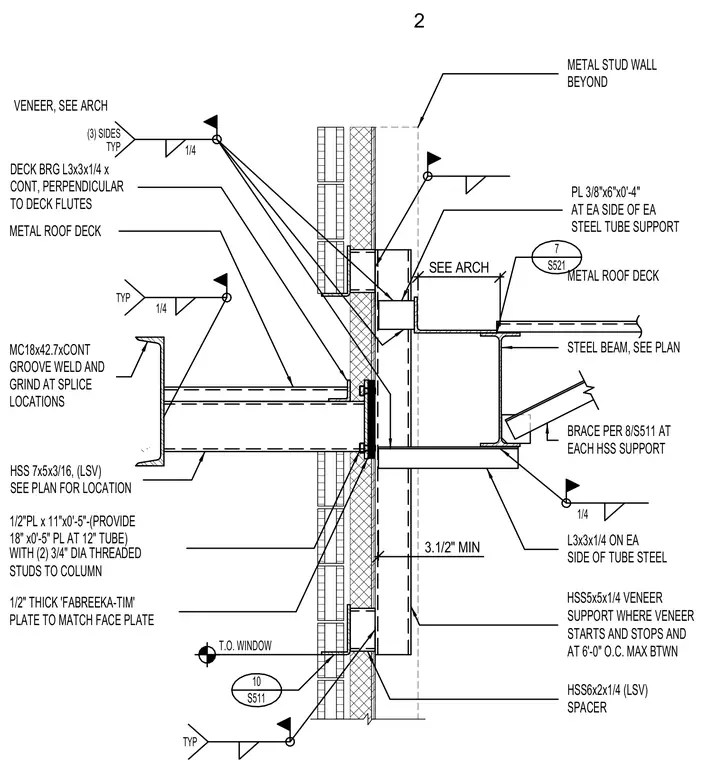

An HSS7x5x3/16 structural tube projects outward to support an eyebrow canopy, welded with a continuous MC18x42.7 channel featuring groove welds ground smooth at splice locations. The steel tube connects via a 1/2-inch thick face plate, a matching 1/2-inch thick Fabreeka-Tim thermal break plate, and two 3/4-inch diameter threaded studs anchored to the column. A 3/8-inch by 6-inch by 0'-4" plate is welded to each side of the steel tube support using three-sided typical 1/4-inch fillet welds. HSS5x5x1/4 and HSS6x2x1/4 sections provide veneer support spaced at a maximum of six feet on center. An interior steel beam receives framing from a diagonal brace detailed per 8/S511 at each hollow structural section support. A continuous L3x3x1/4 angle runs perpendicular to the metal roof deck flutes, tied with 1/4-inch fillet welds.
