Structural · S-APMW7

Offset Post Tension Beams at Concrete Columns

Materials

Concrete Reinforced Concrete

Elements

Columns Beams Floors / Slabs Arches Expansion / Control Joints Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

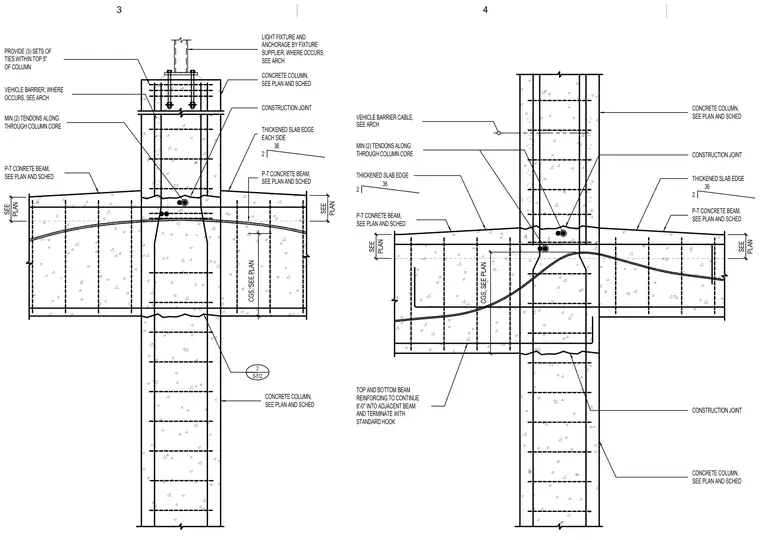

Offset post-tensioned concrete beams intersect a reinforced concrete column. A minimum of two post-tensioning tendons run continuously through the column core. Top and bottom beam reinforcing continues six feet into the adjacent beam and terminates with a standard hook. Construction joints are located at the column interfaces above and below the beam connection. The assembly features thickened slab edges extending thirty-six inches on each side with a two-inch drop. Additional provisions include three sets of ties within the top five inches of the column, along with locations for a vehicle barrier cable and light fixture anchorage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
